| | 4130 Alloy Steel
Tubes
AISI 4130 is a low alloy steel
containing molybdenum and chromium as strengthening agents. The carbon content
is nominally 0.30% and with this relatively low carbon content the alloy is
excellent from the fusion weldability standpoint. The alloy can be hardened by
heat treatment.
| 4130
Alloy Steel Tubes |
| Cold
Finished, Unpolished Mill Finish, Annealed, Stress Relieved. AMS-T-6736A,
MIL-T-3736B. |
|
Order 4130
Tubes Online - Click Here
Technical Data |
| Stock
# |
OD
Inch |
ID
Inch |
Dia.Tol.
Inch |
Wall
Inch |
Length
Inch |
Price
Each |
| MT-719 |
.188" |
.118" |
+/-.004" |
.035" |
72" |
$33.70 |
| MT-620 |
.250" |
.120" |
+/-.004" |
.065" |
72" |
$35.70 |
| MT-676 |
.250" |
.152" |
+/-.004" |
.049" |
72" |
$38.40 |
| MT-736 |
.250" |
.180" |
+/-.004" |
.035" |
72" |
$33.96 |
| MT-699 |
.250" |
.194" |
+/-.004" |
.028" |
72" |
$34.24 |

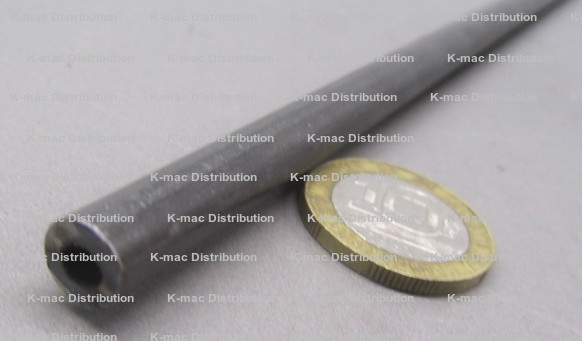

| MT-637 |
.313" |
.183" |
+/-.004" |
.065" |
72" |
$49.12 |
| MT-626 |
.313" |
.215" |
+/-.004" |
.049" |
72" |
$38.48 |
| MT-734 |
.313" |
.243" |
+/-.004" |
.035" |
72" |
$36.98 |
| MT-659 |
.375" |
.135" |
+/-.004" |
.120" |
72" |
$64.62 |
| MT-669 |
.375" |
.209" |
+/-.004" |
.083" |
72" |
$50.20 |
| MT-635 |
.375" |
.245" |
+/-.004" |
.065" |
72" |
$40.46 |
| MT-692 |
.375" |
.277" |
+/-.004" |
.049" |
72" |
$39.04 |
| MT-712 |
.375" |
.305" |
+/-.004" |
.035" |
72" |
$41.12 |
| MT-698 |
.375" |
.319" |
+/-.004" |
.028" |
72" |
$35.70 |
| MT-629 |
.438" |
.198" |
+/-.004" |
.120" |
72" |
$69.90 |
| MT-671 |
.438" |
.272" |
+/-.004" |
.083" |
72" |
$52.46 |
| MT-613 |
.438" |
.308" |
+/-.004" |
.065" |
72" |
$42.46 |
| MT-630 |
.438" |
.340" |
+/-3004" |
.049" |
72" |
$39.44 |
| MT-744 |
.500" |
.260" |
+/-.005" |
.120" |
72" |
$70.22 |
| MT-672 |
.500" |
.334" |
+/-.005" |
.083" |
72" |
$55.78 |
| MT-614 |
.500" |
.370" |
+/-.005" |
.065" |
72" |
$44.42 |
| MT-631 |
.500" |
.402" |
+/-.005" |
.049" |
72" |
$39.76 |
| MT-713 |
.500" |
.430" |
+/-.005" |
.035" |
72" |
$41.42 |
| MT-697 |
.500" |
.444" |
+/-.005" |
.028" |
72" |
$36.00 |
| MT-834 |
.563" |
.323" |
+/-.005" |
.120" |
72" |
$74.50 |
| MT-673 |
.563" |
.397" |
+/-.005" |
.083" |
72" |
$56.22 |
| MT-615 |
.563" |
.433" |
+/-.005" |
.065" |
72" |
$46.44 |
| MT-849 |
.625" |
.249" |
+/-.005" |
.188" |
72" |
$98.04 |
| MT-835 |
.625" |
.385" |
+/-.005" |
.120" |
72" |
$79.70 |
| MT-674 |
.625" |
.459" |
+/-.005" |
.083" |
72" |
$57.12 |
| MT-616 |
.625" |
.495" |
+/-.005" |
.065" |
72" |
$49.12 |
| MT-632 |
.625" |
.527" |
+/-.005" |
.049" |
72" |
$40.46 |
| MT-715 |
.625" |
.555" |
+/-.005" |
.035" |
72" |
$41.76 |
| MT-696 |
.625" |
.569" |
+/-.005" |
.028" |
72" |
$39.46 |
| MT-850 |
.750" |
.374" |
+/-.005" |
.188" |
72" |
$102.22 |
| MT-836 |
.750" |
.510" |
+/-.005" |
.120" |
72" |
$80.80 |
| MT-675 |
.750" |
.584" |
+/-.005" |
.083" |
72" |
$58.24 |
| MT-643 |
.750" |
.620" |
+/-.005" |
.065" |
72" |
$51.12 |
| MT-633 |
.750" |
.652" |
+/-.005" |
.049" |
72" |
$43.12 |
| MT-726 |
.750" |
.680" |
+/-.005" |
.035" |
72" |
$42.24 |
| MT-837 |
.875" |
.635" |
+/-.005" |
.120" |
72" |
$91.02 |
| MT-670 |
.875" |
.709" |
+/-.005" |
.083" |
72" |
$60.48 |
| MT-755 |
.875" |
.745" |
+/-.005" |
.065" |
72" |
$53.08 |
| MT-644 |
.875" |
.777" |
+/-.005" |
.049" |
72" |
$47.92 |
| MT-711 |
.875" |
.805" |
+/-.005" |
.035" |
72" |
$50.14 |
| MT-743 |
1.00" |
.500" |
+0.020" |
.250" |
6" |
$128.00 |
| MT-817 |
1.00" |
.500" |
+/-.005" |
.250" |
72" |
$156.22 |
| MT-851 |
1.00" |
.624" |
+/-.005" |
.188" |
72" |
$129.74 |

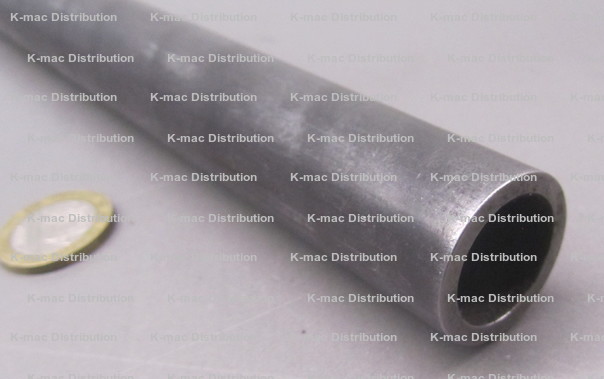

| MT-839 |
1.00" |
.760" |
+/-.005" |
.120" |
72" |
$91.56 |
| MT-668 |
1.00" |
.834" |
+/-.005" |
.083" |
72" |
$66.48 |
| MT-663 |
1.00" |
.870" |
+/-.005" |
.065" |
72" |
$55.70 |
| MT-636 |
1.00" |
.902" |
+/-.005" |
.049" |
72" |
$49.12 |
| MT-720 |
1.00" |
.930" |
+/-.005" |
.035" |
72" |
$50.42 |
| MT-695 |
1.00" |
.944" |
+/-.005" |
.028" |
72" |
$50.22 |
| MT-823 |
1.125" |
.749" |
+/-.005" |
.188" |
72" |
$140.04 |
| MT-840 |
1.125" |
.885" |
+/-.005" |
.120" |
72" |
$110.94 |
| MT-646 |
1.125" |
.959" |
+/-.005" |
.083" |
72" |
$74.44 |
| MT-742 |
1.125" |
.995" |
+/-.005" |
.065" |
72" |
$72.08 |
| MT-628 |
1.125" |
1.027" |
+/-.005" |
.049" |
72" |
$65.28 |
| MT-721 |
1.125" |
1.055" |
+/-.005" |
.035" |
72" |
$60.48 |
| MT-852 |
1.250" |
1.010" |
+/-.005" |
.120" |
72" |
$117.12 |
| MT-647 |
1.250" |
1.084" |
+/-.005" |
.083" |
72" |
$89.30 |
| MT-664 |
1.250" |
1.120" |
+/-.005" |
.065" |
72" |
$80.44 |
| MT-638 |
1.250" |
1.152" |
+/-.005" |
.049" |
72" |
$72.08 |
| MT-723 |
1.250" |
1.180" |
+/-.005" |
.035" |
72" |
$62.26 |
| MT-842 |
1.375" |
1.135" |
+/-.005" |
.120" |
72" |
$132.00 |
| MT-648 |
1.375" |
1.209" |
+/-.005" |
.083" |
72" |
$93.12 |
| MT-665 |
1.375" |
1.245" |
+/-.005" |
.065" |
72" |
$86.58 |
| MT-639 |
1.375" |
1.277" |
+/-.005" |
.049" |
72" |
$74.24 |
| MT-724 |
1.375" |
1.305" |
+/-.005" |
.035" |
72" |
$68.88 |
| MT-733 |
1.50" |
1.000" |
+0.020" |
.250" |
6" |
$135.78 |
| MT-821 |
1.50" |
1.124" |
+/-.020" |
.188" |
72" |
$172.36 |
| MT-833 |
1.50" |
1.260" |
+/-.020" |
.120" |
72" |
$140.04 |
| MT-655 |
1.50" |
1.334" |
+/-.020" |
.083" |
72" |
$104.42 |
| MT-666 |
1.50" |
1.370" |
+/-.020" |
.065" |
72" |
$93.64 |
| MT-640 |
1.50" |
1.402" |
+/-.020" |
.049" |
72" |
$86.28 |
| MT-725 |
1.50" |
1.430" |
+/-.020" |
.035" |
72" |
$79.56 |
| MT-844 |
1.75" |
1.510" |
+/-.020" |
.120" |
72" |
$142.44 |
| MT-656 |
1.75" |
1.584" |
+/-.020" |
.083" |
72" |
$122.32 |
| MT-667 |
1.75" |
1.620" |
+/-.020" |
.065" |
72" |
$107.20 |
| MT-641 |
1.75" |
1.652" |
+/-.020" |
.049" |
72" |
$111.56 |
| MT-731 |
2.00" |
1.500" |
+0.020" |
.250" |
6" |
$118.54 |
| MT-815 |
2.00" |
1.624" |
+/-.020" |
.188" |
72" |
$188.54 |
| MT-845 |
2.00" |
1.760" |
+/-.020" |
.120" |
72" |
$146.66 |
| MT-657 |
2.00" |
1.834" |
+/-.020" |
.083" |
72" |
$122.76 |
| MT-677 |
2.00" |
1.870" |
+/-.020" |
.065" |
72" |
$124.48 |
| MT-642 |
2.00" |
1.902" |
+/-.020" |
.049" |
72" |
$115.56 |
| MT-846 |
2.25" |
2.010" |
+/-.020" |
.120" |
72" |
$161.12 |
| MT-816 |
2.50" |
2.124" |
+/-.020" |
.188" |
72" |
$230.04 |
| MT-847 |
2.50" |
2.260" |
+/-.020" |
.120" |
72" |
$214.40 |
| MT-818 |
3.00" |
2.500" |
+/-.020" |
.250" |
72" |
$382.14 |
| MT-848 |
3.00" |
2.760" |
+/-.020" |
.120" |
72" |
$586.66 |
Prices are subject to change
due to fluctuating market conditions.
| |
|
