Shafts - Precision, Fully Keyed

1045 Steel-Rockwell B95, 2024/T4 Aluminum-Brinell 120, 316 Stainless Steel-Rockwell B85

Fully Keyed Precision Shafts

Straightness Tolerance .012" per Ft., Chamfered Ends

Order Online - Click Here
Stock # Material Shaft OD OD Tolerance Length Keyway Width Keyway Depth  Price
Shaft-1676 1045 Steel .312" -.0005"/-.0025" 3.00" .093" .047"  $13.88
Shaft-1677 1045 Steel .312" -.0005"/-.0025" 6.00" .093" .047"  $21.70
Shaft-1678 1045 Steel .312" -.0005"/-.0025" 9.00" .093" .047"  $29.52
Shaft-1679 1045 Steel .312" -.0005"/-.0025" 12.00" .093" .047"  $31.04
Shaft-1680 1045 Steel .312" -.0005"/-.0025" 18.00" .093" .047"  $35.34
Shaft-1681 1045 Steel .312" -.0005"/-.0025" 24.00" .093" .047"  $46.66
Shaft-1682 1045 Steel .312" -.0005"/-.0025" 36.00" .093" .047"  $62.54
Shaft-1683 1045 Steel .312" -.0005"/-.0025" 48.00" .093" .047"  $73.88
Shaft-1684 1045 Steel .312" -.0005"/-.0025" 60.00" .093" .047"  $88.92

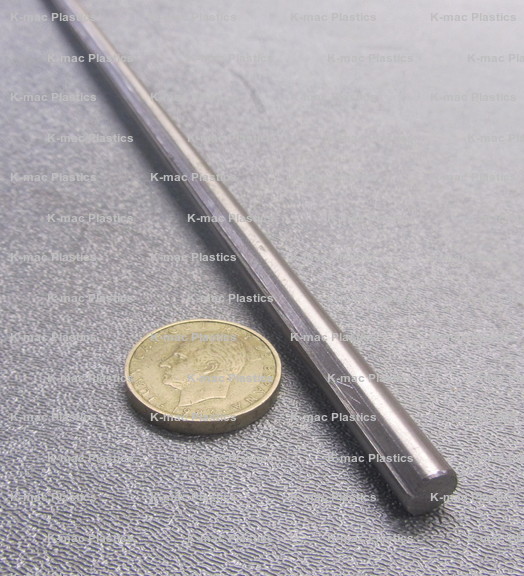

Shaft-1685 1045 Steel .312" -.0005"/-.0025" 72.00" .093" .047"  $95.58
Shaft-1686 1045 Steel .375" -.0005"/-.0025" 3.00" .093" .047"  $14.24
Shaft-1687 1045 Steel .375" -.0005"/-.0025" 6.00" .093" .047"  $22.42
Shaft-1688 1045 Steel .375" -.0005"/-.0025" 9.00" .093" .047"  $30.60
Shaft-1689 1045 Steel .375" -.0005"/-.0025" 12.00" .093" .047"  $33.64
Shaft-1690 1045 Steel .375" -.0005"/-.0025" 18.00" .093" .047"  $38.54
Shaft-1691 1045 Steel .375" -.0005"/-.0025" 24.00" .093" .047"  $51.88
Shaft-1692 1045 Steel .375" -.0005"/-.0025" 36.00" .093" .047"  $69.52
Shaft-1693 1045 Steel .375" -.0005"/-.0025" 48.00" .093" .047"  $82.12
Shaft-1694 1045 Steel .375" -.0005"/-.0025" 60.00" .093" .047"  $98.74
Shaft-1695 1045 Steel .375" -.0005"/-.0025" 72.00" .093" .047"  $106.22
Shaft-1696 1045 Steel .500" -.0005"/-.0025" 3.00" .125" .062"  $14.96
Shaft-1697 1045 Steel .500" -.0005"/-.0025" 6.00" .125" .062"  $23.88
Shaft-1698 1045 Steel .500" -.0005"/-.0025" 9.00" .125" .062"  $32.78
Shaft-1699 1045 Steel .500" -.0005"/-.0025" 12.00" .125" .062"  $35.34
Shaft-1700 1045 Steel .500" -.0005"/-.0025" 18.00" .125" .062"  $40.84
Shaft-1701 1045 Steel .500" -.0005"/-.0025" 24.00" .125" .062"  $55.34
Shaft-1702 1045 Steel .500" -.0005"/-.0025" 36.00" .125" .062"  $70.34
Shaft-1703 1045 Steel .500" -.0005"/-.0025" 48.00" .125" .062"  $88.58
Shaft-1704 1045 Steel .500" -.0005"/-.0025" 60.00" .125" .062"  $98.42
Shaft-1705 1045 Steel .500" -.0005"/-.0025" 72.00" .125" .062"  $115.16
Shaft-1706 1045 Steel .625" -.0005"/-.0025" 3.00" .187" .093"  $15.52
Shaft-1707 1045 Steel .625" -.0005"/-.0025" 6.00" .187" .093"  $24.96
Shaft-1708 1045 Steel .625" -.0005"/-.0025" 9.00" .187" .093"  $34.42
Shaft-1709 1045 Steel .625" -.0005"/-.0025" 12.00" .187" .093"  $37.40
Shaft-1710 1045 Steel .625" -.0005"/-.0025" 18.00" .187" .093"  $44.96
Shaft-1711 1045 Steel .625" -.0005"/-.0025" 24.00" .187" .093"  $59.28
Shaft-1712 1045 Steel .625" -.0005"/-.0025" 36.00" .187" .093"  $75.94
Shaft-1713 1045 Steel .625" -.0005"/-.0025" 48.00" .187" .093"  $96.00
Shaft-1714 1045 Steel .625" -.0005"/-.0025" 60.00" .187" .093"  $106.94
Shaft-1715 1045 Steel .625" -.0005"/-.0025" 72.00" .187" .093"  $125.42
Shaft-1716 1045 Steel .687" -.0005"/-.0025" 3.00" .187" .093"  $16.06
Shaft-1717 1045 Steel .687" -.0005"/-.0025" 6.00" .187" .093"  $26.06
Shaft-1718 1045 Steel .687" -.0005"/-.0025" 9.00" .187" .093"  $36.06
Shaft-1719 1045 Steel .687" -.0005"/-.0025" 12.00" .187" .093"  $38.78
Shaft-1720 1045 Steel .687" -.0005"/-.0025" 18.00" .187" .093"  $48.32
Shaft-1721 1045 Steel .687" -.0005"/-.0025" 24.00" .187" .093"  $60.18
Shaft-1722 1045 Steel .687" -.0005"/-.0025" 36.00" .187" .093"  $77.62
Shaft-1723 1045 Steel .687" -.0005"/-.0025" 48.00" .187" .093"  $98.38
Shaft-1724 1045 Steel .687" -.0005"/-.0025" 60.00" .187" .093"  $113.00
Shaft-1725 1045 Steel .687" -.0005"/-.0025" 72.00" .187" .093"  $132.58
Shaft-1726 1045 Steel .750" -.0005"/-.0025" 3.00" .187" .093"  $16.42
Shaft-1727 1045 Steel .750" -.0005"/-.0025" 6.00" .187" .093"  $26.78
Shaft-1728 1045 Steel .750" -.0005"/-.0025" 9.00" .187" .093"  $37.16
Shaft-1729 1045 Steel .750" -.0005"/-.0025" 12.00" .187" .093"  $40.30
Shaft-1730 1045 Steel .750" -.0005"/-.0025" 18.00" .187" .093"  $50.38
Shaft-1731 1045 Steel .750" -.0005"/-.0025" 24.00" .187" .093"  $62.82
Shaft-1732 1045 Steel .750" -.0005"/-.0025" 36.00" .187" .093"  $81.38
Shaft-1733 1045 Steel .750" -.0005"/-.0025" 48.00" .187" .093"  $103.44
Shaft-1734 1045 Steel .750" -.0005"/-.0025" 60.00" .187" .093"  $103.44
Shaft-1735 1045 Steel .750" -.0005"/-.0025" 72.00" .187" .093"  $134.52
Shaft-1736 1045 Steel .812"
