Metric Steel Brass Tip Set Screws

Brass Tip Alloy Steel Set Screws

Metric Alloy Steel Brass Tip Set Screws,
Rockwell C28, ASME B18.3.6M, ASTM F912
Thread Length:
 Tip Length:
 Tip Diameter:
Part # Threads Pitch Thread Length Tip Diameter Tip Length Drive Size Pkg. Qty. Pkg. Price Order Online
SSS-12607 M3 0.5 mm 3 mm 1.6 mm 0.8 mm 1.5 mm 5 $22.45 Add to Order
SSS-12608 M3 0.5 mm 4 mm 1.6 mm 0.8 mm 1.5 mm 5 $22.45 Add to Order
SSS-12609 M3 0.5 mm 5 mm 1.6 mm 0.8 mm 1.5 mm 5 $22.45 Add to Order
SSS-12610 M3 0.5 mm 6 mm 1.6 mm 0.8 mm 1.5 mm 5 $8.40 Add to Order

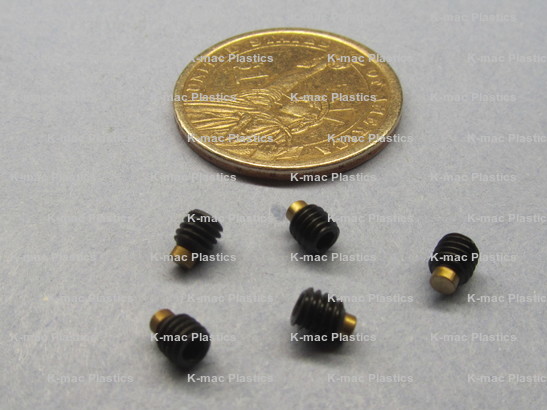

SSS-12611 M4 0.7 mm 4 mm 2.4 mm 1.2 mm 2 mm 5 $19.91 Add to Order
SSS-12612 M4 0.7 mm 6 mm 2.4 mm 1.2 mm 2 mm 5 $20.71 Add to Order
SSS-12613 M4 0.7 mm 8 mm 2.4 mm 1.2 mm 2 mm 5 $8.45 Add to Order
SSS-12614 M4 0.7 mm 10 mm 2.4 mm 1.2 mm 2 mm 5 $20.71 Add to Order
SSS-12615 M5 0.8 mm 5 mm 2.4 mm 1.2 mm 2.5 mm 5 $20.39 Add to Order
SSS-12616 M5 0.8 mm 6 mm 2.4 mm 1.2 mm 2.5 mm 5 $20.39 Add to Order
SSS-12617 M5 0.8 mm 8 mm 2.4 mm 1.2 mm 2.5 mm 5 $20.45 Add to Order
SSS-12618 M5 0.8 mm 10 mm 2.4 mm 1.2 mm 2.5 mm 5 $19.48 Add to Order
SSS-12619 M6 1 mm 6 mm 3.2 mm 1.6 mm 3 mm 5 $20.27 Add to Order
SSS-12620 M6 1 mm 8 mm 3.2 mm 1.6 mm 3 mm 5 $9.00 Add to Order
SSS-12621 M6 1 mm 10 mm 3.2 mm 1.6 mm 3 mm 5 $20.37 Add to Order
SSS-12622 M6 1 mm 12 mm 3.2 mm 1.6 mm 3 mm 5 $20.43 Add to Order
SSS-12623 M6 1 mm 16 mm 3.2 mm 1.6 mm 3 mm 5 $21.23 Add to Order
SSS-12624 M6 1 mm 20 mm 3.2 mm 1.6 mm 3 mm 5 $8.60 Add to Order
SSS-12625 M6 1 mm 25 mm 3.2 mm 1.6 mm 3 mm 5 $23.14 Add to Order
SSS-12626 M8 1.25 mm 6 mm 4.8 mm 2.4 mm 4 mm 1 $11.95 Add to Order
SSS-12627 M8 1.25 mm 8 mm 4.8 mm 2.4 mm 4 mm 5 $19.68 Add to Order

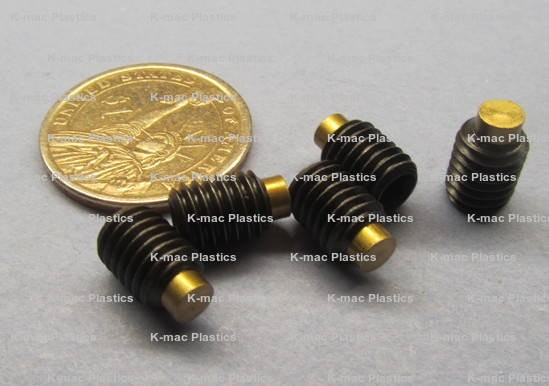

SSS-12628 M8 1.25 mm 10 mm 4.8 mm 2.4 mm 4 mm 5 $21.61 Add to Order
SSS-12629 M8 1.25 mm 12 mm 4.8 mm 2.4 mm 4 mm 5 $20.77 Add to Order
SSS-12630 M8 1.25 mm 16 mm 4.8 mm 2.4 mm 4 mm 5 $20.79 Add to Order
SSS-12631 M8 1.25 mm 25 mm 4.8 mm 2.4 mm 4 mm 5 $24.72 Add to Order
SSS-12632 M8 1.25 mm 30 mm 4.8 mm 2.4 mm 4 mm 5 $11.92 Add to Order
SSS-12633 M10 1.5 mm 10 mm 4.8 mm 2.4 mm 5 mm 5 $21.69 Add to Order
SSS-12634 M10 1.5 mm 12 mm 4.8 mm 2.4 mm 5 mm 5 $23.52 Add to Order
SSS-12635 M10 1.5 mm 16 mm 4.8 mm 2.4 mm 5 mm 5 $24.84 Add to Order
SSS-12636 M10 1.5 mm 20 mm 4.8 mm 2.4 mm 5 mm 5 $22.03 Add to Order
SSS-12637 M10 1.5 mm 25 mm 4.8 mm 2.4 mm 5 mm 5 $11.03 Add to Order
Rev. 08-23, 05-23, 04-23, 11-22
<<
