Brass Pan Head Phillips Machine Screws
Machine Screws - Pan Head Phillips Drive, Class 2A, fully threaded, round top and flat bearing surface.
Brass - Nonmagnetic and good corrosion resistance, Rockwell hardness B55, tensile strength 53,000 psi.
| Brass Pan
Head Phillips Machine Screws, Full Threads, ASME B18.6.3 |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-1328 | 0-80 | 1/4" | 0.116" | 0.044" | No. 0 | 100 | $17.33 | Add to Order |
| MSS-1317 | 0-80 | 3/8" | 0.116" | 0.044" | No. 0 | 100 | $19.57 | Add to Order |
| MSS-1330 | 0-80 | 1/2" | 0.116" | 0.044" | No. 0 | 100 | $20.52 | Add to Order |
| MSS-1331 | 1-64 | 1/4" | 0.142" | 0.053" | No. 0 | 50 | $15.60 | Add to Order |
| MSS-1332 | 1-64 | 3/8" | 0.142" | 0.053" | No. 0 | 50 | $18.86 | Add to Order |
| MSS-1333 | 1-64 | 1/2" | 0.142" | 0.053" | No. 0 | 50 | $18.86 | Add to Order |
| MSS-1334 | 2-56 | 1/8" | 0.167" | 0.062" | No. 1 | 100 | $15.86 | Add to Order |
| MSS-1336 | 2-56 | 3/16" | 0.167" | 0.062" | No. 1 | 100 | $13.25 | Add to Order |
| MSS-1337 | 2-56 | 1/4" | 0.167" | 0.062" | No. 1 | 100 | $14.18 | Add to Order |
| MSS-1374 | 2-56 | 3/8" | 0.167" | 0.062" | No. 1 | 100 | $14.22 | Add to Order |
| MSS-1327 | 2-56 | 1/2" | 0.167" | 0.062" | No. 1 | 100 | $16.07 | Add to Order |
| MSS-1362 | 2-56 | 3/4" | 0.167" | 0.062" | No. 1 | 100 | $24.91 | Add to Order |
| MSS-928 | 4-40 | 3/16" | 0.219" | 0.080" | No. 1 | 100 | $17.41 | Add to Order |
| MSS-917 | 4-40 | 1/4" | 0.219" | 0.080" | No. 1 | 100 | $17.81 | Add to Order |
| MSS-299C | 4-40 | 5/16" | 0.219" | 0.080" | No. 1 | 100 | $17.47 | Add to Order |
| MSS-931 | 4-40 | 3/8" | 0.219" | 0.080" | No. 1 | 100 | $20.66 | Add to Order |
| MSS-932 | 4-40 | 1/2" | 0.219" | 0.080" | No. 1 | 100 | $21.65 | Add to Order |
| MSS-933 | 4-40 | 5/8" | 0.219" | 0.080" | No. 1 | 100 | $23.60 | Add to Order |
| MSS-934 | 4-40 | 3/4" | 0.219" | 0.080" | No. 1 | 100 | $24.91 | Add to Order |
| MSS-935 | 4-40 | 1" | 0.219" | 0.080" | No. 1 | 100 | $28.41 | Add to Order |
| MSS-936 | 5-40 | 1/4" | 0.245" | 0.089" | No. 2 | 100 | $24.02 | Add to Order |
| MSS-937 | 5-40 | 1/2" | 0.245" | 0.089" | No. 2 | 100 | $26.84 | Add to Order |
| MSS-938 | 5-40 | 3/4" | 0.245" | 0.089" | No. 2 | 100 | $34.06 | Add to Order |
| MSS-906 | 6-32 | 3/16" | 0.270" | 0.097" | No. 2 | 100 | $23.90 | Add to Order |
| MSS-929 | 6-32 | 1/4" | 0.270" | 0.097" | No. 2 | 100 | $26.92 | Add to Order |
| MSS-927 | 6-32 | 5/16" | 0.270" | 0.097" | No. 2 | 100 | $27.30 | Add to Order |
| MSS-895 | 6-32 | 3/8" | 0.270" | 0.097" | No. 2 | 100 | $27.93 | Add to Order |
| MSS-896 | 6-32 | 1/2" | 0.270" | 0.097" | No. 2 | 100 | $32.57 | Add to Order |
| MSS-897 | 6-32 | 5/8" | 0.270" | 0.097" | No. 2 | 100 | $34.04 | Add to Order |
| MSS-898 | 6-32 | 3/4" | 0.270" | 0.097" | No. 2 | 100 | $41.50 | Add to Order |
| MSS-899 | 6-32 | 1" | 0.270" | 0.097" | No. 2 | 50 | $26.04 | Add to Order |
| MSS-900 | 6-32 | 1 1/4" | 0.270" | 0.097" | No. 2 | 50 | $30.81 | Add to Order |
| MSS-901 | 6-32 | 1 1/2" | 0.270" | 0.097" | No. 2 | 50 | $31.65 | Add to Order |
| MSS-902 | 6-32 | 2" | 0.270" | 0.097" | No. 2 | 25 | $19.70 | Add to Order |
| MSS-903 | 8-32 | 1/4" | 0.322" | 0.115" | No. 2 | 100 | $31.98 | Add to Order |
| MSS-916 | 8-32 | 5/16" | 0.322" | 0.115" | No. 2 | 100 | $34.73 | Add to Order |
| MSS-1388 | 8-32 | 3/8" | 0.322" | 0.115" | No. 2 | 100 | $37.57 | Add to Order |
| MSS-1389 | 8-32 | 1/2" | 0.322" | 0.115" | No. 2 | 50 | $21.90 | Add to Order |
| MSS-1390 | 8-32 | 5/8" | 0.322" | 0.115" | No. 2 | 50 | $22.97 | Add to Order |
| MSS-1391 | 8-32 | 3/4" | 0.322" | 0.115" | No. 2 | 50 | $19.38 | Add to Order |
| MSS-1392 | 8-32 | 1" | 0.322" | 0.115" | No. 2 | 50 | $23.54 | Add to Order |
| MSS-1393 | 8-32 | 1 1/4" | 0.322" | 0.115" | No. 2 | 25 | $20.98 | Add to Order |
| MSS-1394 | 8-32 | 1 1/2" | 0.322" | 0.115" | No. 2 | 25 | $25.81 | Add to Order |
| MSS-1395 | 8-32 | 2" | 0.322" | 0.115" | No. 2 | 25 | $32.21 | Add to Order |
| MSS-1396 | 10-24 | 1/4" | 0.373" | 0.133" | No. 2 | 50 | $23.54 | Add to Order |
| MSS-1410 | 10-24 | 5/16" | 0.373" | 0.133" | No. 2 | 50 | $24.23 | Add to Order |
| MSS-1398 | 10-24 | 3/8" | 0.373" | 0.133" | No. 2 | 50 | $17.26 | Add to Order |
| MSS-1387 | 10-24 | 1/2" | 0.373" | 0.133" | No. 2 | 50 | $29.17 | Add to Order |
| MSS-1400 | 10-24 | 5/8" | 0.373" | 0.133" | No. 2 | 50 | $32.51 | Add to Order |
| MSS-905 | 10-24 | 3/4" | 0.373" | 0.133" | No. 2 | 50 | $13.65 | Add to Order |
| MSS-894 | 10-24 | 1" | 0.373" | 0.133" | No. 2 | 25 | $23.60 | Add to Order |
| MSS-907 | 10-24 | 1 1/4" | 0.373" | 0.133" | No. 2 | 25 | $24.70 | Add to Order |
| MSS-908 | 10-24 | 1 1/2" | 0.373" | 0.133" | No. 2 | 25 | $29.06 | Add to Order |
| MSS-909 | 10-24 | 2" | 0.373" | 0.133" | No. 2 | 10 | $17.07 | Add to Order |
| MSS-910 | 10-32 | 3/16" | 0.373" | 0.133" | No. 2 | 50 | $24.44 | Add to Order |
| MSS-911 | 10-32 | 1/4" | 0.373" | 0.133" | No. 2 | 50 | $24.13 | Add to Order |
| MSS-912 | 10-32 | 5/16" | 0.373" | 0.133" | No. 2 | 50 | $24.23 | Add to Order |
| MSS-913 | 10-32 | 3/8" | 0.373" | 0.133" | No. 2 | 50 | $26.08 | Add to Order |
| MSS-914 | 10-32 | 1/2" | 0.373" | 0.133" | No. 2 | 50 | $32.30 | Add to Order |
| MSS-915 | 10-32 | 5/8" | 0.373" | 0.133" | No. 2 | 50 | $32.51 | Add to Order |
| MSS-845 | 10-32 | 3/4" | 0.373" | 0.133" | No. 2 | 25 | $19.36 | Add to Order |

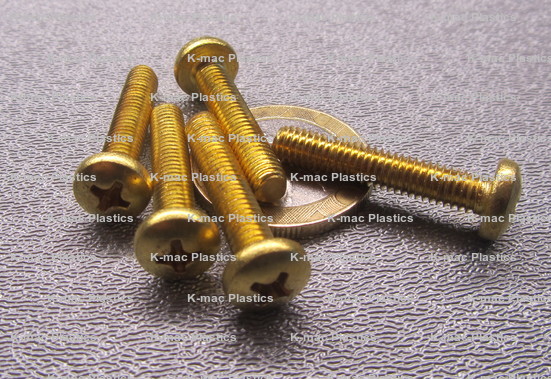

| MSS-774 | 10-32 | 1" | 0.373" | 0.133" | No. 2 | 50 | $30.24 | Add to Order |
| MSS-868 | 10-32 | 1 1/4" | 0.373" | 0.133" | No. 2 | 25 | $24.70 | Add to Order |
| MSS-778 | 10-32 | 1 1/2" | 0.373" | 0.133" | No. 2 | 25 | $32.34 | Add to Order |
| MSS-779 | 10-32 | 2" | 0.373" | 0.133" | No. 2 | 10 | $17.07 | Add to Order |
| MSS-780 | 1/4"-20 | 3/8" | 0.492" | 0.175" | No. 3 | 25 | $25.96 | Add to Order |
| MSS-781 | 1/4"-20 | 1/2" | 0.492" | 0.175" | No. 3 | 25 | $21.42 | Add to Order |
| MSS-782 | 1/4"-20 | 5/8" | 0.492" | 0.175" | No. 3 | 25 | $30.01 | Add to Order |
| MSS-783 | 1/4"-20 | 3/4" | 0.492" | 0.175" | No. 3 | 25 | $37.11 | Add to Order |
| MSS-784 | 1/4"-20 | 1" | 0.492" | 0.175" | No. 3 | 10 | $19.09 | Add to Order |
| MSS-785 | 1/4"-20 | 1 1/4" | 0.492" | 0.175" | No. 3 | 10 | $20.73 | Add to Order |
| MSS-799 | 1/4"-20 | 1 1/2" | 0.492" | 0.175" | No. 3 | 10 | $22.18 | Add to Order |
| MSS-787 | 1/4"-20 | 2" | 0.492" | 0.175" | No. 3 | 10 | $27.66 | Add to Order |
| Rev. 08-23, 02-23, 11-22, 03-22 | ||||||||
