Brass Oval Head Slotted Drive Machine Screws
Machine Screws - Oval Head Slotted Drive, Class 2A, fully threaded, 82° beveled head withe a decorative rounded top.
Brass - Nonmagnetic and good corrosion resistance, Rockwell hardness B55, tensile strength 53,000 psi.
| Brass Slotted Oval Head Machine Screws ASME B18.6.3,50,000 PSI Tensile, FT |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Oval Top Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-10781 | 4-40 | 3/16" | 0.212" | 0.104" | 0.037" | 100 | $14.86 | Add to Order |
| MSS-10782 | 4-40 | 1/4" | 0.212" | 0.104" | 0.037" | 100 | $13.72 | Add to Order |

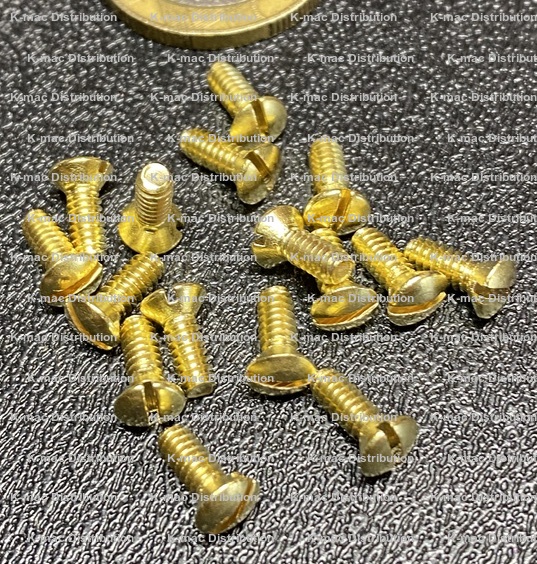

| MSS-10783 | 4-40 | 5/16" | 0.212" | 0.104" | 0.037" | 100 | $14.28 | Add to Order |
| MSS-10784 | 4-40 | 3/8" | 0.212" | 0.104" | 0.037" | 100 | $14.86 | Add to Order |

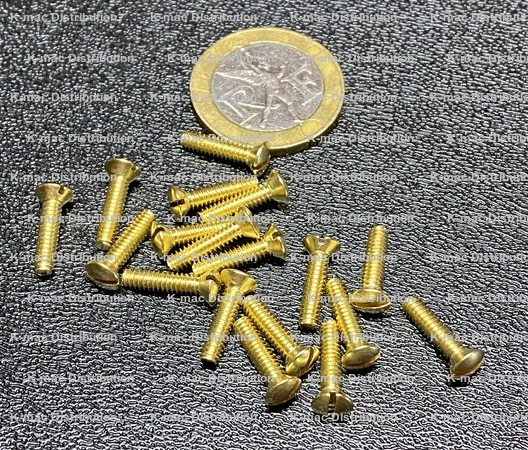

| MSS-10785 | 4-40 | 1/2" | 0.212" | 0.104" | 0.037" | 100 | $15.14 | Add to Order |
| MSS-3315 | 6-32 | 1/4" | 0.262" | 0.128" | 0.045" | 100 | $16.76 | Add to Order |
| MSS-10786 | 6-32 | 5/16" | 0.262" | 0.128" | 0.045" | 100 | $17.72 | Add to Order |
| MSS-3328 | 6-32 | 3/8" | 0.262" | 0.128" | 0.045" | 100 | $17.24 | Add to Order |
| MSS-3329 | 6-32 | 1/2" | 0.262" | 0.128" | 0.045" | 100 | $17.80 | Add to Order |
| MSS-3330 | 6-32 | 3/4" | 0.262" | 0.128" | 0.045" | 100 | $21.38 | Add to Order |
| MSS-3331 | 6-32 | 1" | 0.262" | 0.128" | 0.045" | 50 | $15.28 | Add to Order |
| MSS-3332 | 6-32 | 1 1/4" | 0.262" | 0.128" | 0.045" | 50 | $17.14 | Add to Order |
| MSS-3333 | 6-32 | 1 1/2" | 0.262" | 0.128" | 0.045" | 50 | $19.24 | Add to Order |
| MSS-3334 | 8-32 | 1/4" | 0.312" | 0.123" | 0.052" | 100 | $23.94 | Add to Order |
| MSS-3335 | 8-32 | 3/8" | 0.312" | 0.152" | 0.052" | 100 | $23.12 | Add to Order |
| MSS-3336 | 8-32 | 1/2" | 0.312" | 0.152" | 0.052" | 100 | $24.32 | Add to Order |

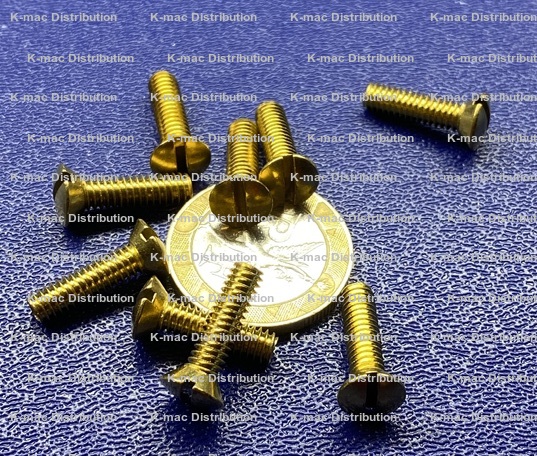

| MSS-3304 | 8-32 | 5/8" | 0.312" | 0.152" | 0.052" | 50 | $14.84 | Add to Order |
| MSS-3327 | 8-32 | 3/4" | 0.312" | 0.152" | 0.052" | 50 | $15.58 | Add to Order |
| MSS-3325 | 8-32 | 1" | 0.312" | 0.152" | 0.052" | 50 | $21.96 | Add to Order |
| MSS-3379 | 10-24 | 1/2" | 0.362" | 0.176" | 0.060" | 50 | $19.62 | Add to Order |
| MSS-3380 | 10-24 | 3/4" | 0.362" | 0.176" | 0.060" | 50 | $23.94 | Add to Order |
| MSS-3381 | 10-24 | 1" | 0.362" | 0.176" | 0.060" | 25 | $15.66 | Add to Order |
| MSS-3382 | 10-24 | 1 1/2" | 0.362" | 0.176" | 0.060" | 25 | $18.96 | Add to Order |
| MSS-10787 | 10-32 | 3/8" | 0.362" | 0.176" | 0.060" | 50 | $15.14 | Add to Order |

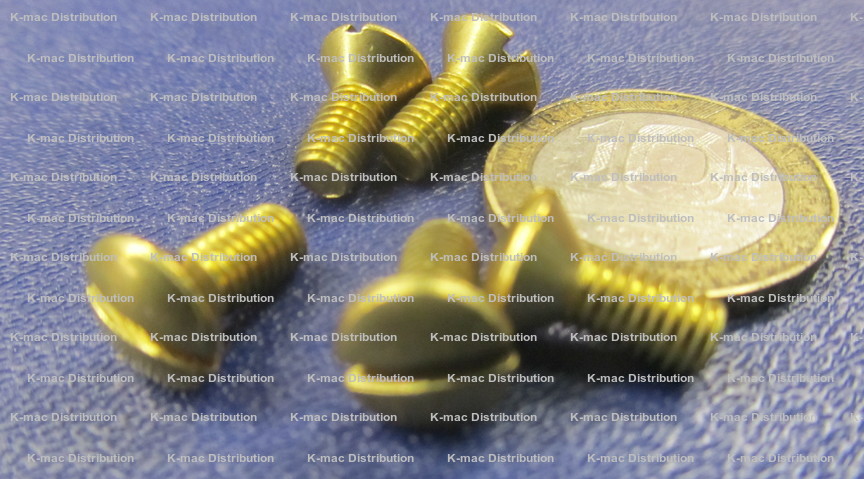

| MSS-3383 | 10-32 | 1/2" | 0.362" | 0.176" | 0.060" | 50 | $19.62 | Add to Order |
| MSS-10788 | 10-32 | 5/8" | 0.362" | 0.176" | 0.060" | 50 | $16.58 | Add to Order |
| MSS-3351 | 10-32 | 3/4" | 0.362" | 0.176" | 0.060" | 50 | $23.94 | Add to Order |
| MSS-3374 | 10-32 | 1" | 0.362" | 0.176" | 0.060" | 25 | $15.66 | Add to Order |
| MSS-3372 | 10-32 | 1 1/2" | 0.362" | 0.176" | 0.060" | 25 | $18.96 | Add to Order |
| MSS-3341 | 1/4"-20 | 1/2" | 0.477" | 0.232" | 0.079" | 25 | $17.98 | Add to Order |

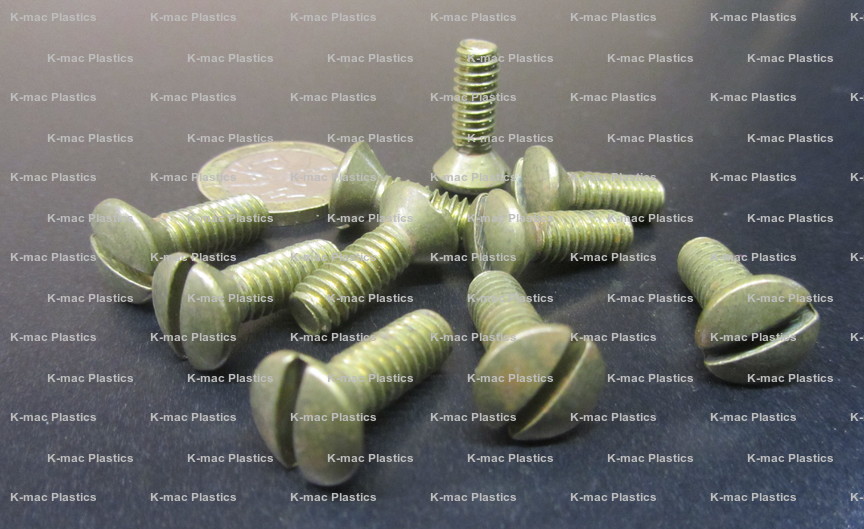

| MSS-3342 | 1/4"-20 | 3/4" | 0.477" | 0.232" | 0.079" | 25 | $21.70 | Add to Order |
| MSS-3343 | 1/4"-20 | 1" | 0.477" | 0.232" | 0.079" | 25 | $24.40 | Add to Order |
| MSS-3344 | 1/4"-20 | 1 1/2" | 0.477" | 0.232" | 0.079" | 10 | $13.56 | Add to Order |
