Brass Flat Head Slotted Drive Machine Screws
Machine Screws - Flat Head Slotted Drive, Class 2A, *fully threaded, bevel under the head provides flush surface within countersunk holes.
Brass - Nonmagnetic and good corrosion resistance, Rockwell hardness B55, tensile strength 53,000 psi.
| Brass Slotted Flat Head Machine Screws ASME B18.6.3, 50,000 PSI Tensile |
||||||||
| Part # | Thread Size | Length | Head Profile | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-3695 | 1-72 | 1/4" | Standard | 0.137" | 0.043" | 100 | $19.24 | Add to Order |
| MSS-3696 | 1-72 | 1/2" | Standard | 0.137" | 0.043" | 50 | $11.93 | Add to Order |
| MSS-3697 | 2-56 | 1/8" | Undercut | 0.162" | 0.036" | 100 | $13.80 | Add to Order |
| MSS-3698 | 2-56 | 3/16" | Standard | 0.162" | 0.051" | 100 | $14.53 | Add to Order |
| MSS-3699 | 2-56 | 1/4" | Standard | 0.162" | 0.051" | 100 | $13.99 | Add to Order |
| MSS-10522 | 2-56 | 5/16" | Standard | 0.162" | 0.051" | 100 | $10.40 | Add to Order |
| MSS-3700 | 2-56 | 3/8" | Standard | 0.162" | 0.051" | 100 | $11.99 | Add to Order |
| MSS-3714 | 2-56 | 1/2" | Standard | 0.162" | 0.051" | 100 | $17.16 | Add to Order |
| MSS-3702 | 2-56 | 3/4" | Standard | 0.162" | 0.051" | 100 | $17.20 | Add to Order |
| MSS-3691 | 2-56 | 7/8" | Standard | 0.162" | 0.051" | 100 | $21.21 | Add to Order |
| MSS-3704 | 3-48 | 1/4" | Standard | 0.187" | 0.059" | 100 | $18.75 | Add to Order |
| MSS-3705 | 3-48 | 1/2" | Standard | 0.187" | 0.059" | 100 | $19.51 | Add to Order |
| MSS-3706 | 3-48 | 3/4" | Standard | 0.187" | 0.059" | 100 | $20.60 | Add to Order |
| MSS-3707 | 4-40 | 1/8" | Undercut | 0.212" | 0.047" | 100 | $12.10 | Add to Order |
| MSS-3708 | 4-40 | 3/16" | Undercut | 0.212" | 0.047" | 100 | $12.85 | Add to Order |
| MSS-3709 | 4-40 | 1/4" | Standard | 0.212" | 0.067" | 100 | $7.62 | Add to Order |
| MSS-3710 | 4-40 | 5/16" | Standard | 0.212" | 0.067" | 100 | $14.39 | Add to Order |
| MSS-3711 | 4-40 | 3/8" | Standard | 0.212" | 0.067" | 100 | $7.94 | Add to Order |
| MSS-3712 | 4-40 | 1/2" | Standard | 0.212" | 0.067" | 100 | $10.06 | Add to Order |
| MSS-3860 | 4-40 | 3/4" | Standard | 0.212" | 0.067" | 100 | $20.22 | Add to Order |
| MSS-3703 | 4-40 | 1" | Standard | 0.212" | 0.067" | 100 | $14.87 | Add to Order |
| MSS-3701 | 4-40 | 1 1/2" | Standard | 0.212" | 0.067" | 100 | $24.28 | Add to Order |
| MSS-3669 | 5-40 | 1/4" | Standard | 0.237" | 0.075" | 100 | $14.62 | Add to Order |
| MSS-3670 | 5-40 | 3/8" | Standard | 0.237" | 0.075" | 100 | $15.62 | Add to Order |
| MSS-3671 | 5-40 | 1/2" | Standard | 0.237" | 0.075" | 100 | $19.05 | Add to Order |
| MSS-3672 | 6-32 | 1/4" | Standard | 0.262" | 0.083" | 100 | $8.74 | Add to Order |
| MSS-10523 | 6-32 | 5/16" | Standard | 0.262" | 0.083" | 100 | $14.13 | Add to Order |
| MSS-3673B | 6-32 | 3/8" | Standard | 0.262" | 0.083" | 100 | $10.37 | Add to Order |
| MSS-3674 | 6-32 | 1/2" | Standard | 0.262" | 0.083" | 100 | $16.55 | Add to Order |
| MSS-3675 | 6-32 | 5/8" | Standard | 0.262" | 0.083" | 100 | $15.44 | Add to Order |
| MSS-3676B | 6-32 | 3/4" | Standard | 0.262" | 0.083" | 100 | $19.49 | Add to Order |
| MSS-3677 | 6-32 | 1" | Standard | 0.262" | 0.083" | 100 | $23.94 | Add to Order |
| MSS-3690 | 6-32 | 1 1/4" | Standard | 0.262" | 0.083" | 50 | $17.60 | Add to Order |
| MSS-3679 | 6-32 | 1 1/2" | Standard | 0.262" | 0.083" | 100 | $21.34 | Add to Order |
| MSS-3668 | 6-32 | 2" | Standard | 0.262" | 0.083" | 50 | $29.21 | Add to Order |
| MSS-3681 | 6-32 | 3" | Standard | 0.262" | 0.083" | 10 | $17.77 | Add to Order |
| MSS-3682 | 8-32 | 1/4" | Undercut | 0.312" | 0.070" | 100 | $19.72 | Add to Order |
| MSS-10524 | 8-32 | 5/16" | Standard | 0.312" | 0.100" | 100 | $19.64 | Add to Order |
| MSS-3683 | 8-32 | 3/8" | Standard | 0.312" | 0.100" | 100 | $19.40 | Add to Order |
| MSS-3684B | 8-32 | 1/2" | Standard | 0.312" | 0.100" | 50 | $11.74 | Add to Order |
| MSS-3685 | 8-32 | 5/8" | Standard | 0.312" | 0.100" | 50 | $14.07 | Add to Order |
| MSS-3686 | 8-32 | 3/4" | Standard | 0.312" | 0.100" | 100 | $28.27 | Add to Order |
| MSS-3687 | 8-32 | 1" | Standard | 0.312" | 0.100" | 50 | $17.18 | Add to Order |
| MSS-3688 | 8-32 | 1 1/4" | Standard | 0.312" | 0.100" | 50 | $18.63 | Add to Order |
| MSS-3725 | 8-32 | 1 1/2" | Standard | 0.312" | 0.100" | 50 | $21.67 | Add to Order |
| MSS-3588 | 8-32 | 2" | Standard | 0.312" | 0.100" | 25 | $23.98 | Add to Order |
| MSS-3589 | 8-32 | 2 1/2" | Standard | 0.312" | 0.100" | 25 | $27.47 | Add to Order |
| MSS-3590 | 8-32 | 3" PT | Standard | 0.312" | 0.100" | 50 | $46.62 | Add to Order |
| MSS-3591 | 10-24 | 3/8" | Standard | 0.362" | 0.116" | 50 | $9.77 | Add to Order |
| MSS-3592 | 10-24 | 1/2" | Standard | 0.362" | 0.116" | 50 | $14.28 | Add to Order |
| MSS-3593 | 10-24 | 5/8" | Standard | 0.362" | 0.116" | 50 | $21.84 | Add to Order |
| MSS-3594 | 10-24 | 3/4" | Standard | 0.362" | 0.116" | 50 | $17.24 | Add to Order |
| MSS-3631 | 10-24 | 1" | Standard | 0.362" | 0.116" | 50 | $21.53 | Add to Order |
| MSS-3584 | 10-24 | 1 1/4" | Standard | 0.362" | 0.116" | 25 | $17.77 | Add to Order |
| MSS-3619 | 10-24 | 1 1/2" | Standard | 0.362" | 0.116" | 50 | $31.46 | Add to Order |
| MSS-3645 | 10-24 | 2" | Standard | 0.362" | 0.116" | 25 | $31.00 | Add to Order |
| MSS-3646 | 10-24 | 2 1/2" PT | Standard | 0.362" | 0.116" | 25 | $34.00 | Add to Order |
| MSS-3647 | 10-32 | 1/4" | Undercut | 0.362" | 0.081" | 100 | $28.92 | Add to Order |
| MSS-3648 | 10-32 | 3/8" | Standard | 0.362" | 0.116" | 100 | $26.52 | Add to Order |
| MSS-3649 | 10-32 | 1/2" | Standard | 0.362" | 0.116" | 100 | $31.98 | Add to Order |
| MSS-3650 | 10-32 | 5/8" | Standard | 0.362" | 0.116" | 50 | $25.66 | Add to Order |
| MSS-3651 | 10-32 | 3/4" | Standard | 0.362" | 0.116" | 100 | $39.67 | Add to Order |
| MSS-3652 | 10-32 | 1" | Standard | 0.362" | 0.116" | 50 | $31.69 | Add to Order |
| MSS-3653 | 10-32 | 1 1/4" | Standard | 0.362" | 0.116" | 50 | $33.35 | Add to Order |
| MSS-3667 | 10-32 | 1 1/2" | Standard | 0.362" | 0.116" | 25 | $24.32 | Add to Order |
| MSS-3655 | 10-32 | 2" | Standard | 0.362" | 0.116" | 25 | $32.38 | Add to Order |
| MSS-3644 | 10-32 | 2 1/2" PT | Standard | 0.362" | 0.116" | 25 | $37.67 | Add to Order |
| MSS-3657 | 10-32 | 3" PT | Standard | 0.362" | 0.116" | 10 | $18.21 | Add to Order |
| MSS-3658 | 10-32 | 4" PT | Standard | 0.362" | 0.116" | 5 | $18.48 | Add to Order |
| MSS-3659 | 12-24 | 1/2" | Standard | 0.412" | 0.132" | 100 | $44.44 | Add to Order |
| MSS-3660 | 12-24 | 3/4" | Standard | 0.412" | 0.132" | 50 | $23.54 | Add to Order |
| MSS-3661 | 12-24 | 1" | Standard | 0.412" | 0.132" | 25 | $21.88 | Add to Order |
| MSS-3662 | 12-24 | 1 1/2" | Standard | 0.412" | 0.132" | 25 | $31.90 | Add to Order |
| MSS-3663 | 12-24 | 2" | Standard | 0.412" | 0.132" | 25 | $36.25 | Add to Order |
| MSS-3664 | 1/4"-20 | 3/8" | Undercut | 0.477" | 0.107" | 50 | $34.13 | Add to Order |
| MSS-3665 | 1/4"-20 | 1/2" | Standard | 0.477" | 0.153" | 50 | $26.73 | Add to Order |
| MSS-3633 | 1/4"-20 | 5/8" | Standard | 0.477" | 0.153" | 50 | $28.94 | Add to Order |
| MSS-3656 | 1/4"-20 | 3/4" | Standard | 0.477" | 0.153" | 25 | $25.39 | Add to Order |
| MSS-3654 | 1/4"-20 | 7/8" | Standard | 0.477" | 0.153" | 25 | $26.12 | Add to Order |
| MSS-4088 | 1/4"-20 | 1" | Standard | 0.477" | 0.153" | 25 | $28.06 | Add to Order |
| MSS-4056 | 1/4"-20 | 1 1/4" | Standard | 0.477" | 0.153" | 25 | $33.75 | Add to Order |
| MSS-4079 | 1/4"-20 | 1 1/2" | Standard | 0.477" | 0.153" | 25 | $38.64 | Add to Order |
| MSS-10525 | 1/4"-20 | 1 3/4" | Standard | 0.477" | 0.153" | 10 | $15.31 | Add to Order |
| MSS-4077 | 1/4"-20 | 2" | Standard | 0.477" | 0.153" | 10 | $18.98 | Add to Order |
| MSS-4045 | 1/4"-20 | 2 1/2" PT | Standard | 0.477" | 0.153" | 10 | $24.49 | Add to Order |
| MSS-4046 | 1/4"-20 | 3" PT | Standard | 0.477" | 0.153" | 10 | $28.33 | Add to Order |
| MSS-4047 | 5/16"-18 | 1/2" | Undercut | 0.597" | 0.134" | 25 | $23.39 | Add to Order |
| MSS-10526 | 5/16"-18 | 5/8" | Standard | 0.597" | 0.191" | 25 | $31.48 | Add to Order |
| MSS-4048 | 5/16"-18 | 3/4" | Standard | 0.597" | 0.191" | 10 | $17.22 | Add to Order |
| MSS-4049 | 5/16"-18 | 1" | Standard | 0.597" | 0.191" | 10 | $20.58 | Add to Order |
| MSS-4050 | 5/16"-18 | 1 1/4" | Standard | 0.597" | 0.191" | 10 | $22.01 | Add to Order |
| MSS-4051 | 5/16"-18 | 1 1/2" | Standard | 0.597" | 0.191" | 10 | $25.62 | Add to Order |
| MSS-4052 | 5/16"-18 | 2" | Standard | 0.597" | 0.191" | 10 | $31.16 | Add to Order |
| MSS-4053 | 5/16"-18 | 2 1/2" PT | Standard | 0.597" | 0.191" | 5 | $21.21 | Add to Order |
| MSS-4066 | 5/16"-18 | 3" PT | Standard | 0.597" | 0.191" | 5 | $23.00 | Add to Order |
| MSS-4055 | 3/8"-16 | 3/4" | Standard | 0.717" | 0.230" | 10 | $27.26 | Add to Order |
| MSS-4044 | 3/8"-16 | 1" | Standard | 0.717" | 0.230" | 10 | $22.68 | Add to Order |
| MSS-4057 | 3/8"-16 | 1 1/4" | Standard | 0.717" | 0.230" | 10 | $30.98 | Add to Order |
| MSS-4058 | 3/8"-16 | 1 1/2" | Standard | 0.717" | 0.230" | 5 | $19.53 | Add to Order |
| MSS-10527 | 3/8"-16 | 1 3/4" | Standard | 0.717" | 0.230" | 5 | $19.36 | Add to Order |

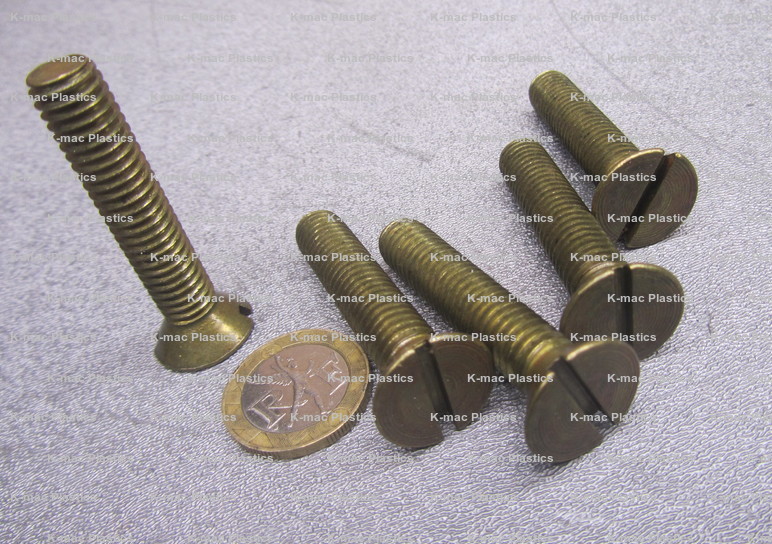

| MSS-4059 | 3/8"-16 | 2" | Standard | 0.717" | 0.230" | 5 | $24.07 | Add to Order |
| MSS-4060 | 3/8"-16 | 2 1/2" PT | Standard | 0.717" | 0.230" | 5 | $31.06 | Add to Order |
| MSS-4061 | 3/8"-16 | 3" PT | Standard | 0.717" | 0.230" | 1 | $6.20 | Add to Order |
| MSS-4062 | 1/2"-13 | 1" | Standard | 0.815" | 0.223" | 5 | $25.91 | Add to Order |
| MSS-4063 | 1/2"-13 | 1 1/4" | Standard | 0.815" | 0.223" | 1 | $6.32 | Add to Order |
| MSS-4064 | 1/2"-13 | 1 1/2" | Standard | 0.815" | 0.223" | 1 | $6.11 | Add to Order |
| MSS-4101 | 1/2"-13 | 2" | Standard | 0.815" | 0.223" | 1 | $7.41 | Add to Order |
| MSS-4054 | 1/2"-13 | 2 1/2" PT | Standard | 0.815" | 0.223" | 1 | $9.64 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | ||||||||
