Nylon 6/6 Fillister Head Slotted Machine Screws
Machine Screws - Fillister Head Slotted, Class 2A, fully threaded.
Nylon 6/6 - Non conductive, chemical and solvent resistant, except mineral acids. Temperature range -40°/+185°F. Absorbs moisture, can affect dimensions and properties. Off White.
| Nylon Fillister Head Slotted Machine Screws, Full Threads | |||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| MSS-9365 | 0-80 | 1/8" | 0.096" | 0.055" | 100 | $30.56 | Add to Order |
| MSS-9366 | 0-80 | 3/16" | 0.096" | 0.055" | 100 | $31.67 | Add to Order |
| MSS-9367 | 0-80 | 1/4" | 0.096" | 0.055" | 100 | $32.84 | Add to Order |
| MSS-9368 | 2-56 | 1/8" | 0.140" | 0.083" | 100 | $20.35 | Add to Order |
| MSS-9369 | 2-56 | 3/16" | 0.140" | 0.083" | 100 | $20.90 | Add to Order |
| MSS-9370 | 2-56 | 1/4" | 0.140" | 0.083" | 100 | $20.98 | Add to Order |

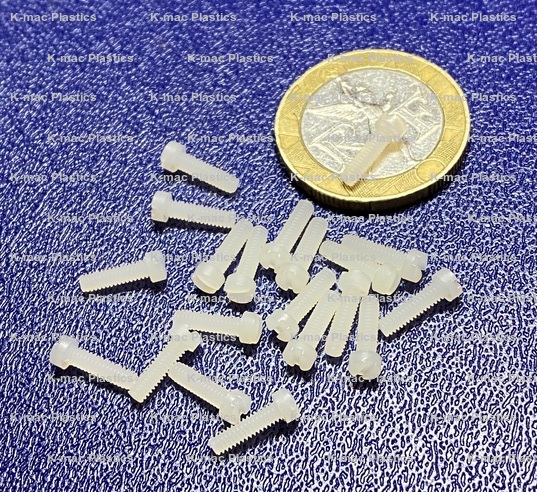

| MSS-9371 | 2-56 | 5/16" | 0.140" | 0.083" | 100 | $21.13 | Add to Order |

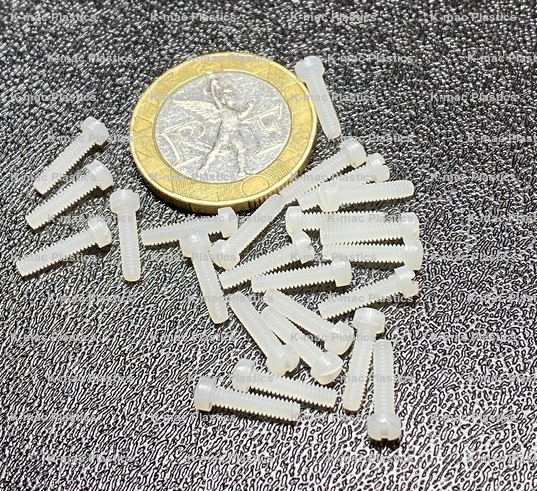

| MSS-9372 | 2-56 | 3/8" | 0.140" | 0.083" | 100 | $21.34 | Add to Order |
| MSS-9373 | 2-56 | 1/2" | 0.140" | 0.083" | 100 | $21.44 | Add to Order |
| MSS-9374 | 2-56 | 3/4" | 0.140" | 0.083" | 100 | $21.67 | Add to Order |
| MSS-9375 | 2-56 | 1" | 0.140" | 0.083" | 100 | $21.88 | Add to Order |
| MSS-9376 | 4-40 | 3/16" | 0.183" | 0.107" | 100 | $20.81 | Add to Order |

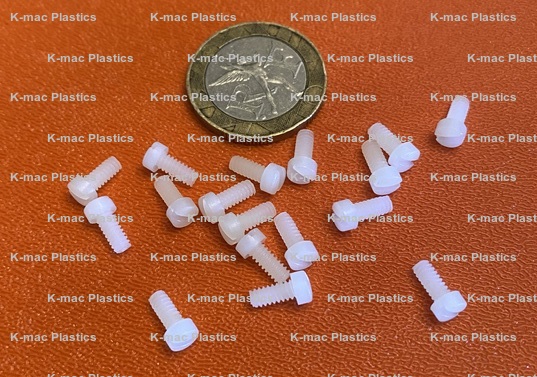

| MSS-9377 | 4-40 | 1/4" | 0.183" | 0.107" | 100 | $20.92 | Add to Order |
| MSS-9378 | 4-40 | 9/32" | 0.183" | 0.107" | 100 | $21.04 | Add to Order |

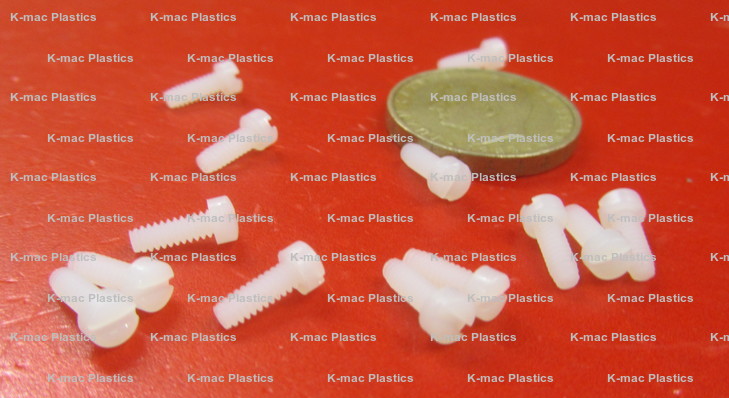

| MSS-9379 | 4-40 | 5/16" | 0.183" | 0.107" | 100 | $21.17 | Add to Order |

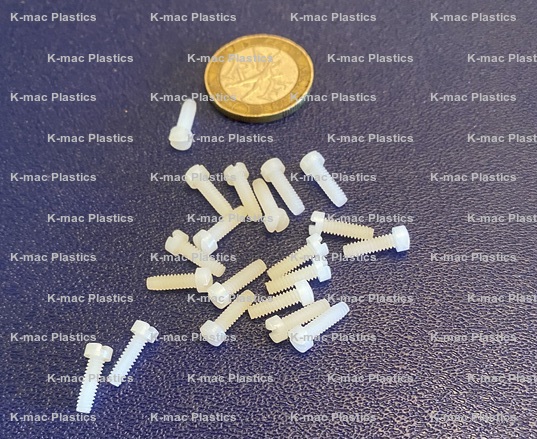

| MSS-9380 | 4-40 | 3/8" | 0.183" | 0.107" | 100 | $21.29 | Add to Order |
| MSS-9381 | 4-40 | 1/2" | 0.183" | 0.107" | 100 | $21.40 | Add to Order |
| MSS-9382 | 4-40 | 5/8" | 0.183" | 0.107" | 100 | $21.53 | Add to Order |
| MSS-9383 | 4-40 | 3/4" | 0.183" | 0.107" | 100 | $21.76 | Add to Order |
| MSS-9384 | 4-40 | 1" | 0.183" | 0.107" | 100 | $21.88 | Add to Order |
| MSS-9385 | 6-32 | 3/16" | 0.226" | 0.132" | 100 | $21.53 | Add to Order |
| MSS-9386 | 6-32 | 1/4" | 0.226" | 0.132" | 100 | $21.76 | Add to Order |
| MSS-9387 | 6-32 | 5/16" | 0.226" | 0.132" | 100 | $21.88 | Add to Order |
| MSS-9388 | 6-32 | 3/8" | 0.226" | 0.132" | 50 | $6.45 | Add to Order |

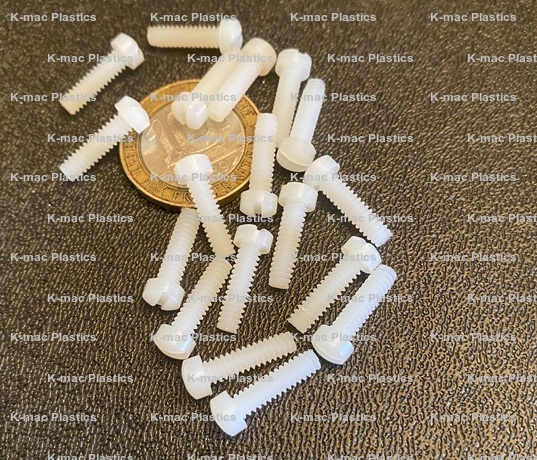

| MSS-9389 | 6-32 | 1/2" | 0.226" | 0.132" | 100 | $22.11 | Add to Order |
| MSS-9390 | 6-32 | 5/8" | 0.226" | 0.132" | 100 | $22.49 | Add to Order |

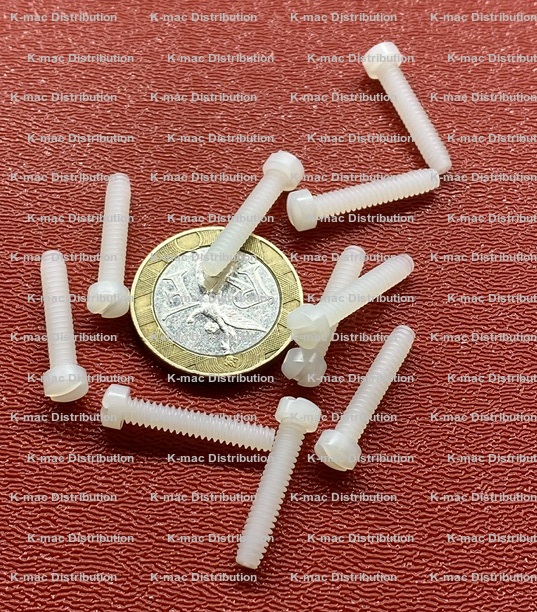

| MSS-9391 | 6-32 | 3/4" | 0.226" | 0.132" | 100 | $22.60 | Add to Order |
| MSS-9392 | 6-32 | 1" | 0.226" | 0.132" | 100 | $22.60 | Add to Order |
| MSS-9393 | 8-32 | 1/4" | 0.270" | 0.156" | 100 | $22.60 | Add to Order |

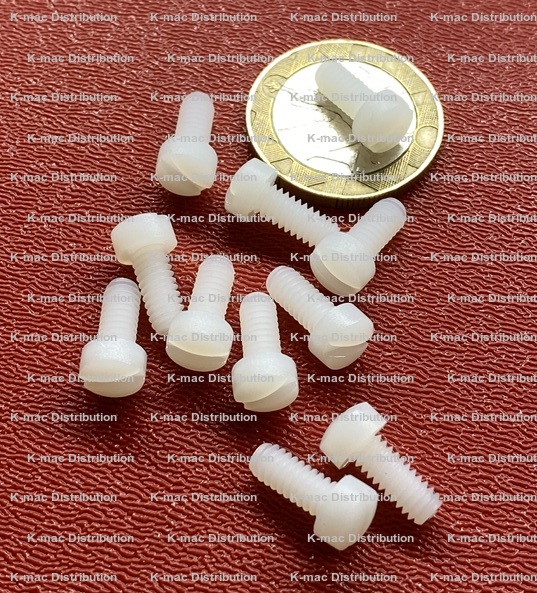

| MSS-9394 | 8-32 | 3/8" | 0.270" | 0.156" | 100 | $22.72 | Add to Order |

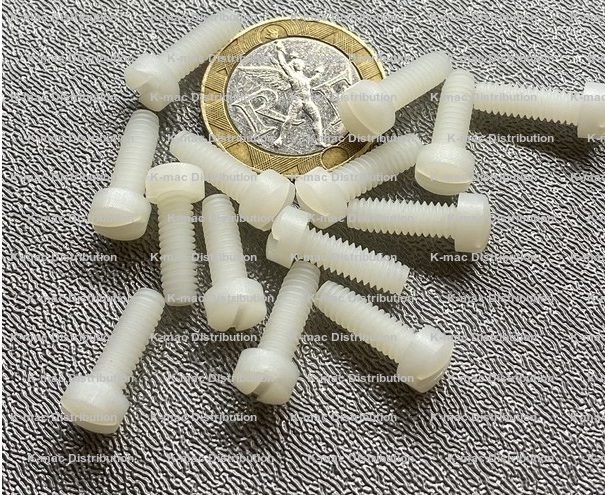

| MSS-9395 | 8-32 | 1/2" | 0.270" | 0.156" | 100 | $22.85 | Add to Order |

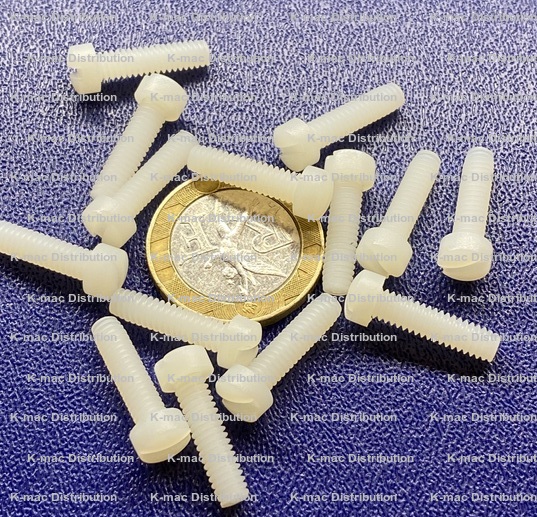

| MSS-9396 | 8-32 | 5/8" | 0.270" | 0.156" | 100 | $22.85 | Add to Order |
| MSS-9397 | 8-32 | 3/4" | 0.270" | 0.156" | 100 | $22.95 | Add to Order |
| MSS-9398 | 8-32 | 1" | 0.270" | 0.156" | 50 | $5.21 | Add to Order |
| MSS-9399 | 8-32 | 1 1/2" | 0.270" | 0.156" | 100 | $23.92 | Add to Order |
| MSS-9400 | 10-24 | 1/4" | 0.313" | 0.180" | 100 | $24.04 | Add to Order |
| MSS-9401 | 10-24 | 1/2" | 0.313" | 0.180" | 100 | $24.51 | Add to Order |
| MSS-9402 | 10-24 | 3/4" | 0.313" | 0.180" | 100 | $24.86 | Add to Order |
| MSS-9403 | 10-24 | 1" | 0.313" | 0.180" | 100 | $24.99 | Add to Order |
| MSS-9404 | 10-24 | 1 1/2" | 0.313" | 0.180" | 100 | $25.60 | Add to Order |
| MSS-9405 | 10-32 | 1/8" | 0.313" | 0.180" | 100 | $23.92 | Add to Order |
| MSS-9406 | 10-32 | 1/4" | 0.313" | 0.180" | 100 | $24.04 | Add to Order |
| MSS-9407 | 10-32 | 3/8" | 0.313" | 0.180" | 100 | $24.40 | Add to Order |
| MSS-9408 | 10-32 | 1/2" | 0.313" | 0.180" | 100 | $24.51 | Add to Order |
| MSS-9409 | 10-32 | 5/8" | 0.313" | 0.180" | 100 | $24.63 | Add to Order |
| MSS-9410 | 10-32 | 3/4" | 0.313" | 0.180" | 100 | $24.86 | Add to Order |
| MSS-9411 | 10-32 | 1" | 0.313" | 0.180" | 100 | $24.99 | Add to Order |
| MSS-9412 | 10-32 | 1 1/2" | 0.313" | 0.180" | 100 | $25.12 | Add to Order |
| MSS-9413 | 10-32 | 2" | 0.313" | 0.180" | 100 | $28.35 | Add to Order |
| MSS-9414 | 1/4"-20 | 1/4" | 0.414" | 0.237" | 100 | $27.38 | Add to Order |
| MSS-9415 | 1/4"-20 | 3/8" | 0.414" | 0.237" | 100 | $15.48 | Add to Order |
| MSS-9416 | 1/4"-20 | 1/2" | 0.414" | 0.237" | 100 | $27.74 | Add to Order |
| MSS-9417 | 1/4"-20 | 5/8" | 0.414" | 0.237" | 100 | $27.87 | Add to Order |
| MSS-9418 | 1/4"-20 | 3/4" | 0.414" | 0.237" | 100 | $27.97 | Add to Order |
| MSS-9419 | 1/4"-20 | 1" | 0.414" | 0.237" | 100 | $28.22 | Add to Order |
| MSS-9420 | 1/4"-20 | 1 1/2" | 0.414" | 0.237" | 100 | $28.94 | Add to Order |
| MSS-9421 | 1/4"-20 | 2" | 0.414" | 0.237" | 50 | $9.66 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | |||||||
